Aluminium wire
Product name：Aluminum wire
Specifications：Φ0.8mm-Φ5mm
Standard：
a、aluminum wire：GB/T 12608-2003
b、Row material：GB/T 3954-2008
Purity: aluminum≥99.7%

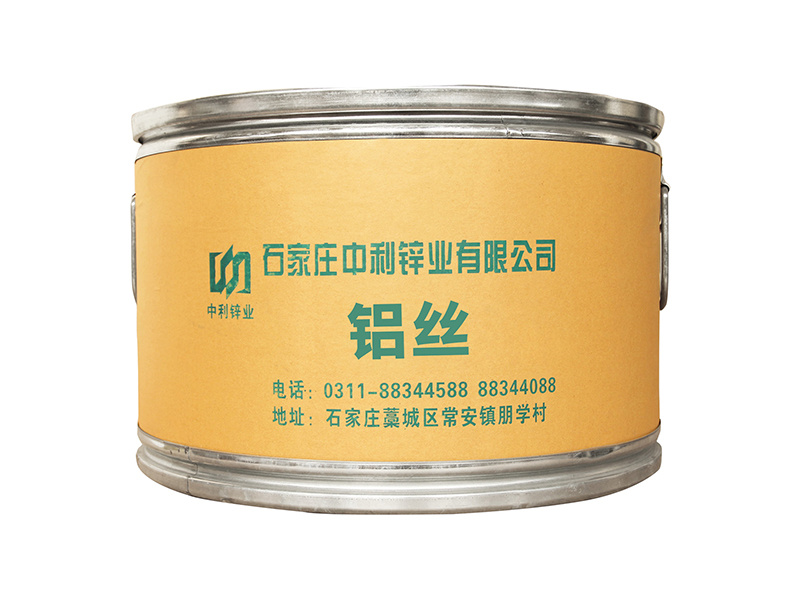

Product packing
Barrel：25kg～100kg
Large barrel: outer dia 460mm, height 280mm
Middle barrel: outer dia 570mm, height 380mm
Small barrel: outer dia 570mm, height 740mm
Description of products：
This product adopts advanced production technology. The surface and inner quality are good and stability. The products have good mechanical properties. As anti-corrosion coating materials, the products can be widely used in steel structure anticorrosion (Bridges, derrick, storage tank, power tower, wind power tower drum, containers, metal stents, dam gate and ductile pipes, traffic equipment, etc.). Our products were tested by the authority detection, The technical indicators can meet the eu ROHS environmental protection directive. Our products has the following features:
a. High purity, impurity content less than 0.3%;
b. Strong adhesion and low material loss during anti-corrosion spraying;
1.aluminum wire chemical indicators
|
chemical composition% |
Al |
Si |
Fe |
Ti |
Cu |
Zn |
Mn |
|
standard value |
≥99.5 |
≤0.3 |
≤0.4 |
≤0.05 |
≤0.05 |
≤0.07 |
≤0.05 |
2. Physical indicators
|
Term |
index |
|
Tensile strength Mpa |
115 ± 10 |
|
Elongation（%） |
≥11 |
|
RESISTANCE（Ω） |
≤28 |
3. wire diameter size
|
Diameter mm |
Tolerance mm |
|
0.5~1.0 |
+0.00 -0.03 |
|
1.0~2.0 |
+0.00 -0.05 |
|
2.0~3.0 |
+0.00 -0.06 |
|
3.0~4.76 |
+0.00 -0.07 |
4.Application:
steel structure anticorrosion, container, bridges, derrick, storage tank,power towel, poles, capacitors, metal stents, ductile cast iron pipes, transportation equipment, etc.
